GALAX 550 SUPERIOR EL 380

The GALAX 550 EL SUPERIOR panel saw from the Italian manufacturer SOCOMEC is a top-notch solution for demanding joinery operations and industrial furniture production. Thanks to its solid design, powerful 11kW motor and sophisticated design, it is ideal for precise and repeatable cuts even in large-format and thick materials.

The machine comes standard with electric blade lift and tilt, self-braking motor, an anodized aluminum sliding table with a length of 3800 mm, parallelogram cover and digital tilt indicator. A wide range of optional accessories is available, including a pre-cut unit, digital readouts or a hanging control panel.

od 365 000 CZK

Technical Specifications

Main motor: 11 kW (15 HP)
Scoring unit motor (optional): 0.55 kW (0.75 HP)
Sliding table dimensions: 3800 × 420 mm
Maximum cutting length: 3800 mm
Maximum cutting width between blade and rip fence: 1250 mm
Fixed table size: 1180 × 670 mm
Main blade diameter: 550 mm
Scoring blade diameter (optional): 120 mm
Maximum cutting height with Ø550 blade at 90°: 200 mm
Main blade rotation speed: 3000 / 4000 / 5000 rpm
Scoring blade rotation speed (optional): 8000 rpm
Dust extraction ports: Ø 100 mm and Ø 120 mm
Net weight: 1000 kg

Standard Equipment (CE version)

Electric blade lifting and tilting
Self-braking motor
Low-voltage electrical control system
Parallelogram-style blade guard for Ø550 blades
Blade speed indicator
Manual star-delta motor starter

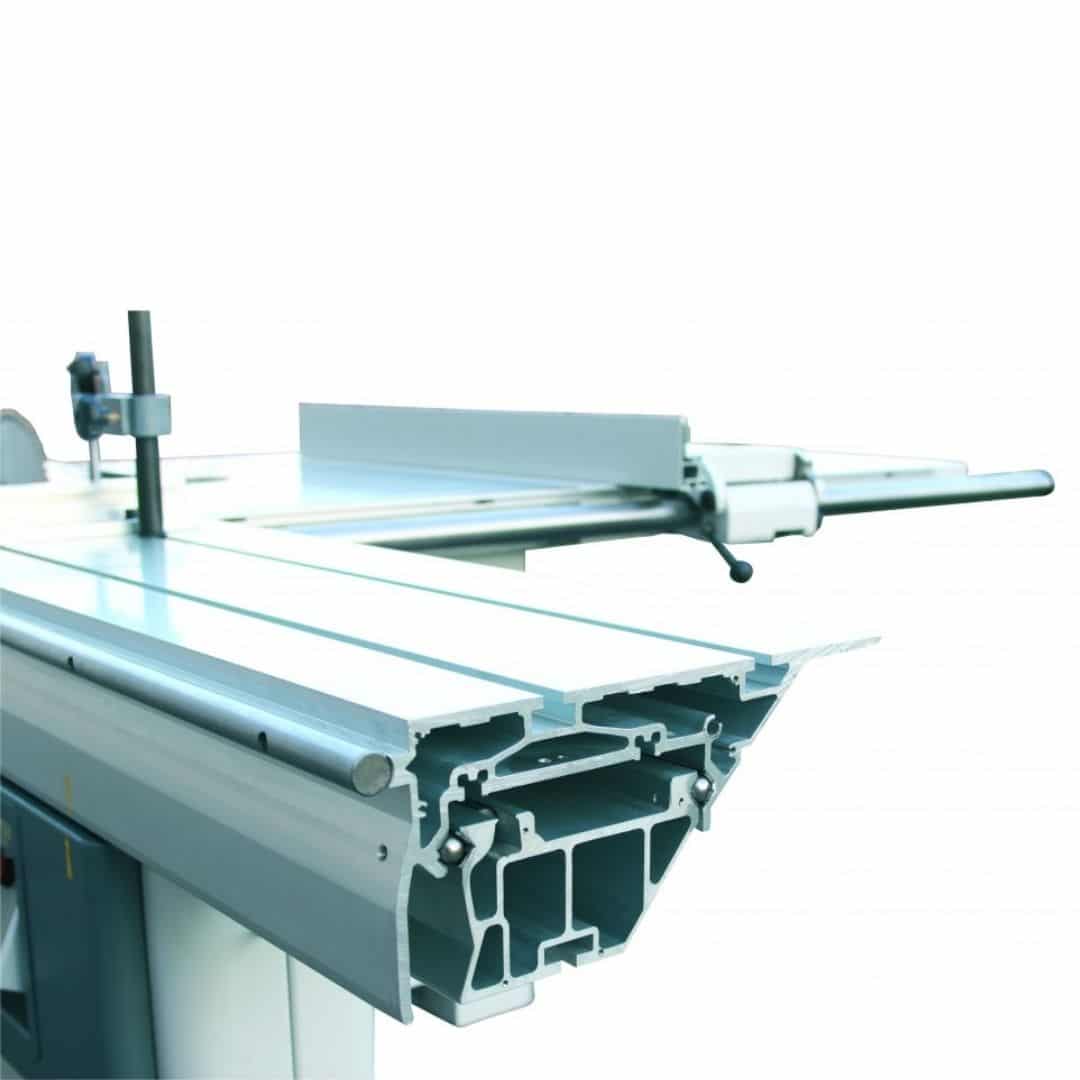

Anodized aluminum sliding table (3800 × 400 mm) with roller system on ground and hardened bars
Digital blade tilt indicator
Crosscut fence with fixed angle stops at 7.5° – 15° – 18° – 22.5° – 30° – 36° – 45°
Crosscut fence with 1000 mm stop and hold-down clamp
Rear table extension
Extendable roller support on auxiliary table
Instruction manual and service keys
