F 700PL

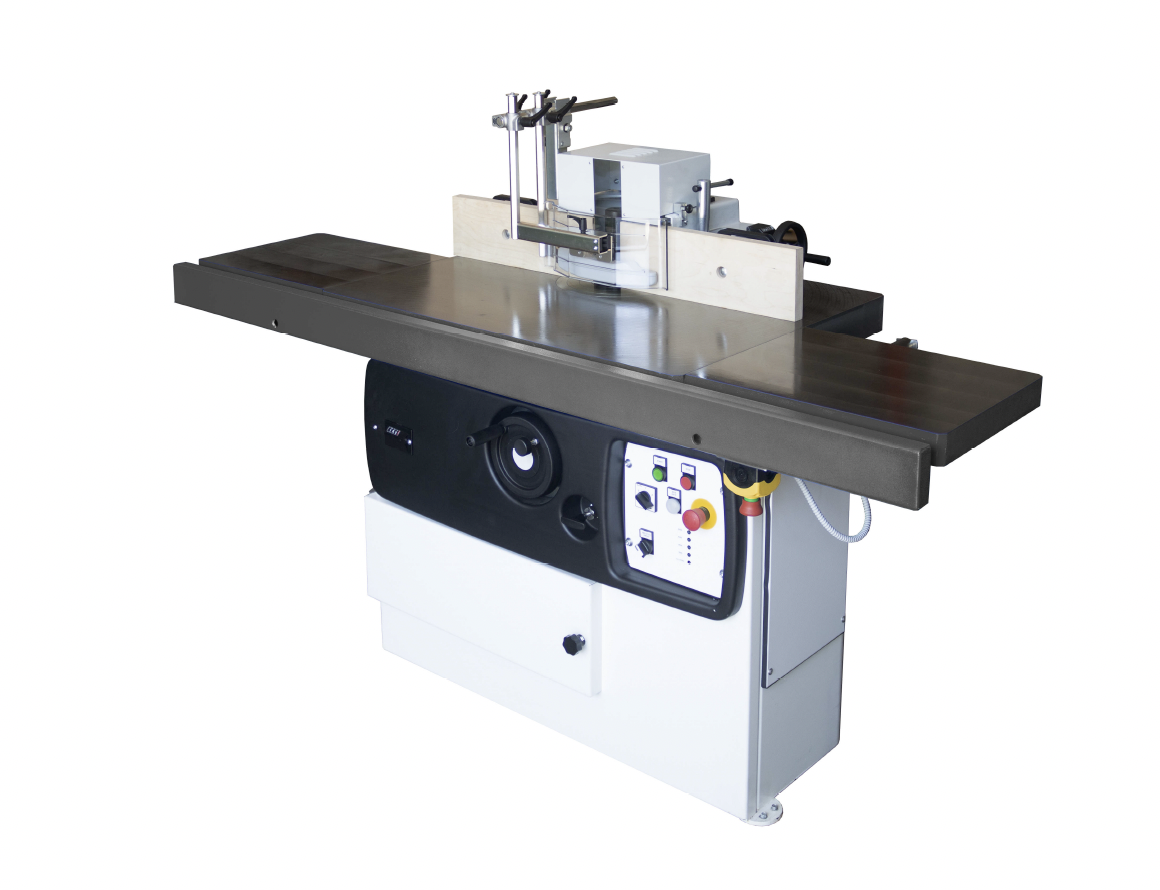

The SOCOMEC F 700C spindle moulder with fixed shaft and lateral table extensions is a heavy-duty woodworking machine designed for precision and safety. Ideal for small to medium woodworking workshops, it ensures stability and efficient handling.

od 200 000 CZK

Technical Specifications

  • Motor power: 4 kW (5.5 HP)
  • Main cast iron table dimensions: 1000 × 750 mm
  • Table dimensions with side extensions: 2000 × 400 mm
  • Front extension travel: 375 mm
  • Max. support surface from spindle center: 2000 × 895 mm
  • Spindle diameter: 35 mm
  • Usable spindle length: 140 mm
  • Spindle stroke: 160 mm
  • Spindle speeds: 3000 / 4500 / 6000 / 8000 rpm
  • Max. tool diameter above table: 250 mm
  • Max. tool diameter under table: 250 × 160 mm
  • Dust extraction ports: Ø 120 mm and Ø 150 mm
  • Net weight: 500 kg

Standard Equipment (CE version)

  • Working height adjustable from 40 to 200 mm
  • Cast iron table with side extensions
  • Quick speed change via belt lever
  • 4 steel insert rings for spindle table hole: Ø 220 / 160 / 110 / 75 mm
