F 700C

The SOCOMEC F 700C spindle moulder with fixed spindle and front sliding carriage is a heavy-duty woodworking machine designed for precision and safety. Ideal for small to medium woodworking workshops, it ensures stability and efficient handling.

Technical Specifications

  • Motor power: 4 kW (5.5 HP)
  • Fixed steel table size: 1000 × 485 mm
  • Sliding carriage size: 1000 × 245 mm
  • Useful tenoning stroke: 500 mm
  • Spindle diameter: 30 / 35 / 50 mm
  • Useful spindle length: 140 / 140 / 160 mm
  • Spindle stroke: 150 mm
  • Spindle speeds: 3000 / 4500 / 6000 / 8000 RPM
  • Max cutter diameter above table: 250 mm
  • Max cutter diameter under table: 250 × 160 mm
  • Dust extraction outlets: Ø 120 / 150 mm
  • Net weight: 460 kg

Standard Equipment (CE Version)

  • Electrical supply: 400 V + Neutral
  • Fast spindle speed change via lever-operated belt system
  • 4 steel reducer rings for cutter opening: Ø 220 / 160 / 110 / 75 mm
  • Steel fixed table with extensions

Optional Accessories

  • Spindle rotation reversal
  • Upgrade to 7.5 HP (5.5 kW) motor

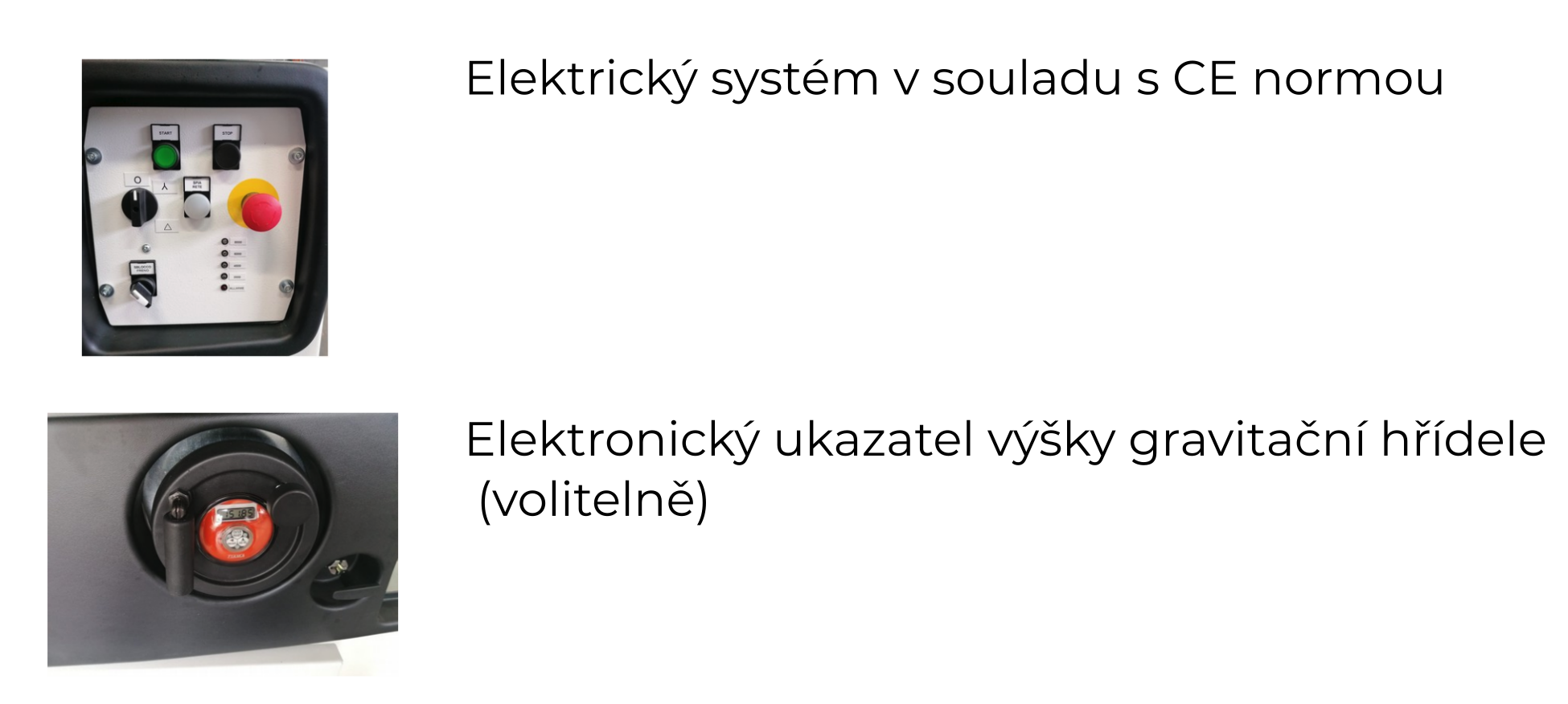

  • Electronic gravity height indicator for spindle
  • Horizontal arm for feeder (1050 mm)
  • STEFF 2034 Power Feeder (optional)
