F 700I | Legdan.cz

The SOCOMEC F700I is a heavy-duty spindle moulder with a tilting spindle, offering advanced flexibility for complex woodworking tasks. With spindle inclination from -10° to +45°, it is the ideal solution for professionals requiring both precision and versatility in shaping and profiling.

Technical Specifications

  • Motor power: 4 kW (5.5 HP)
  • Fixed table dimensions: 1200 × 750 mm

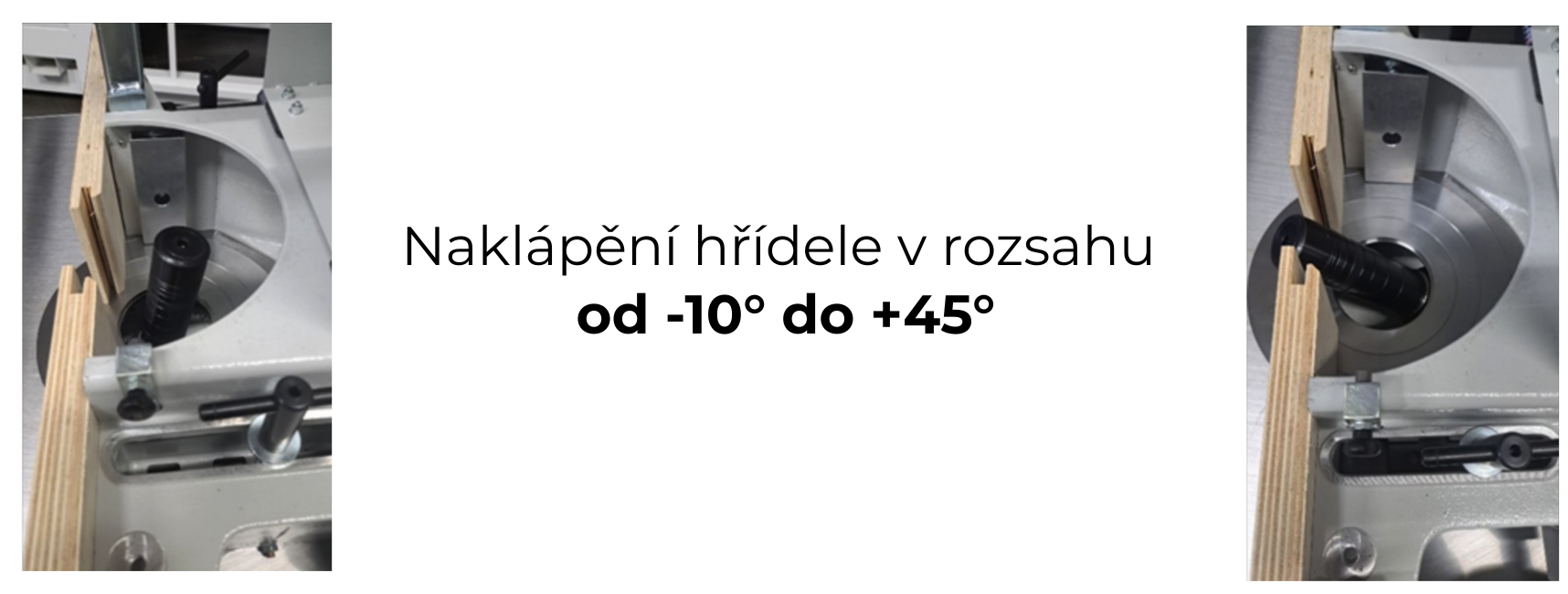

  • Spindle tilt range: from -10° to +45°
  • Cutter diameter/height under table: up to Ø 275 mm × 170 mm
  • Spindle stroke (Ø 30–50 mm): 140–220 mm
  • Spindle speeds: 3000 / 4500 / 6000 / 8000 RPM
  • Dust extraction outlets: Ø 150 / 120 mm
  • Net weight: 490 kg

Standard Equipment (CE Version)

  • Fast speed change via lever-operated belt system
  • Set of 4 steel reducer rings: Ø 220 / 160 / 110 / 75 mm
  • Standard spindle Ø 30 mm (other diameters available upon request)

Optional Accessories

  • Spindle rotation reversal
  • 7.5 HP (5.5 kW) motor upgrade
  • Electronic gravity height indicator
  • Idle roller Ø 60 mm (right side of the table)
  • Spindle Ø 50 mm, usable length 220 mm
