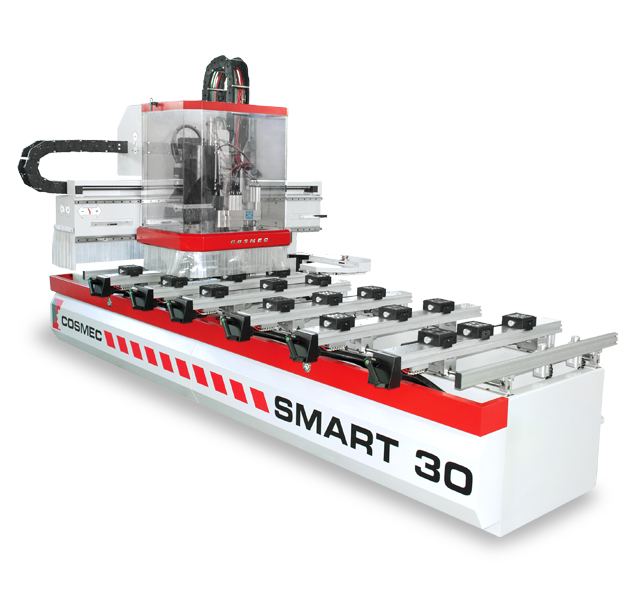

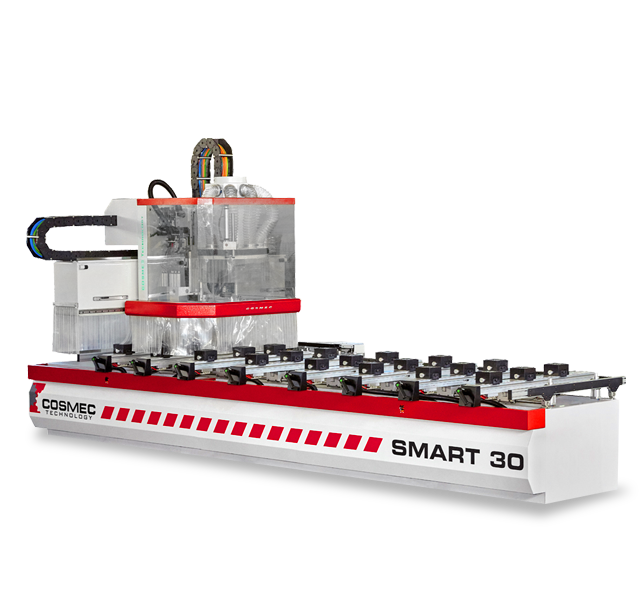

SMART 30

CNC MACHINING CENTER WITH FIXED TABLE AND OPEN BRIDGE

HIGH ACCURACY AND RELIABILITY

Specially designed for easy and flexible machining, this machining center is the ideal solution for craftsmen and small businesses looking to increase the quality of their products. Thanks to the use of the same components as the higher models of COSMEC machines, this series guarantees high precision and reliability. Innovative technological solutions and configurability of working groups ensure a high quality surface treatment in any conditions of use.

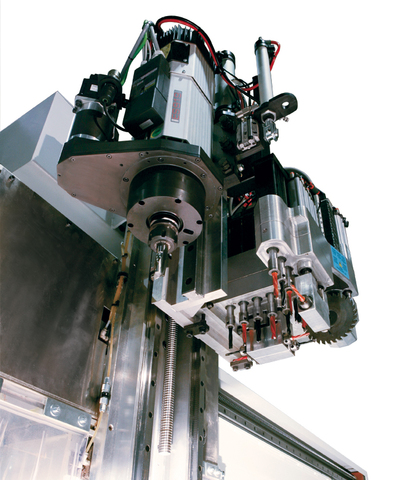

This type of machine is available in a 3-axis version or a 5-axis continuous head.

TECHNICAL DATA	SMART 30	SMART 30 – 5 AXIS

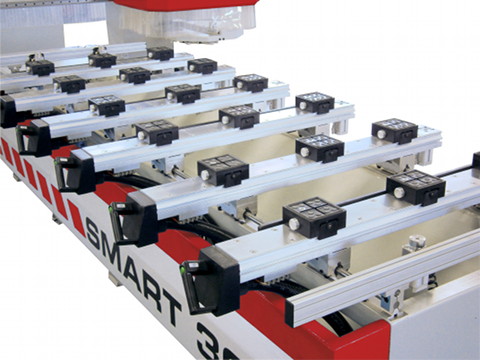

Useful working area	X from 3100 to 9100 mm Y 1350-1450 mm Z 150 mm bakelite table 120 mm bar table	X from 3100 to 9100 mm Y 1350-1450 mm Z 250 mm bakelite table 200 mm bar table
Vectorial rapid speed	85 m/min	85 m/min
Linear rapid speed	60 m/min	60 m/min
Electrospindle power	10/12 kW	11/13 kW
Electrospindle attachment	ISO 30	HSK F 63
Electrospindle speed	24,000 rpm	24,000 rpm
Vacuum pump capacity	100-250 m³/h	100-250 m³/h

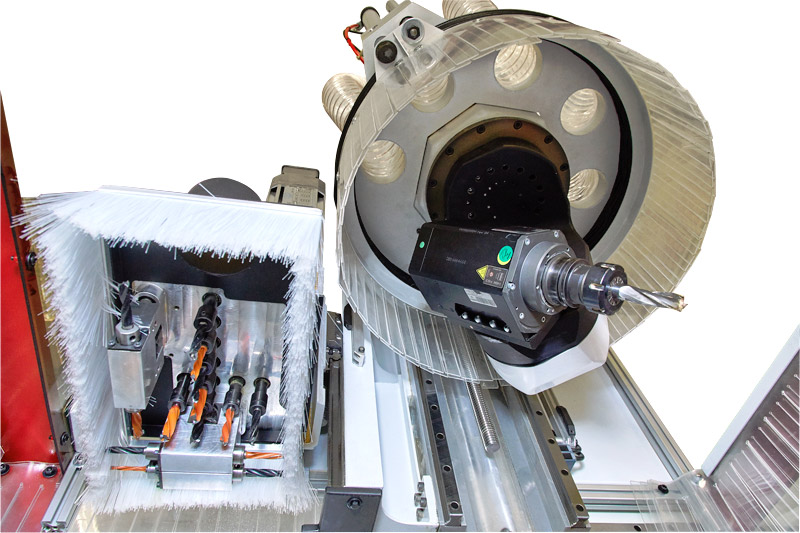

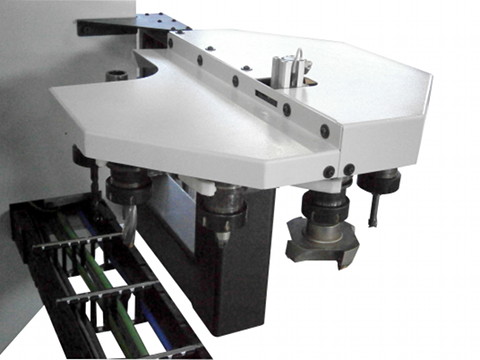

Rotary tool changer	10 positions	10/16 positions
Rack tool changer	10 positions	10 positions
Maximum number of installable tools	20	26

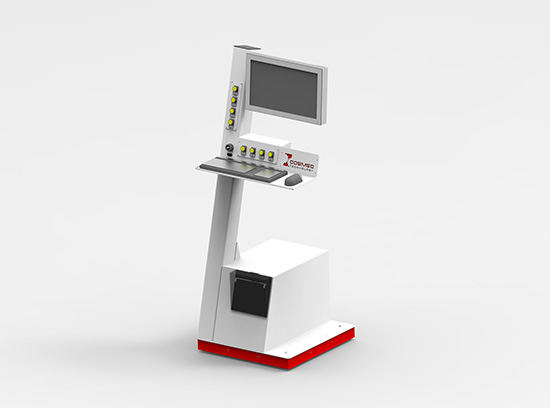

Numerical control	OSAI	OSAI
